Hexbeam Photo Gallery

This gallery shows photographs of the various HexBeam antennas I have constructed over the past couple of years. It is not meant to be a step-by-step guide to construction, but rather a potpourri of techniques which may give you some ideas for constructing your own HexBeam.

Classic1
Classic2
Broadband
Experimental

Current probe in use
Testbed wire fixings
Wire extensions
Spreader extensions
Multiband broadband testbed
Multiband broadband testbed
Multiband broadband testbed
Inductively loaded 10m testbed
Driver loading coils
Reflector loading coils

-10 <<
>> +10
First
Previous
Next
Last
12 / 24
File ref: expts_011

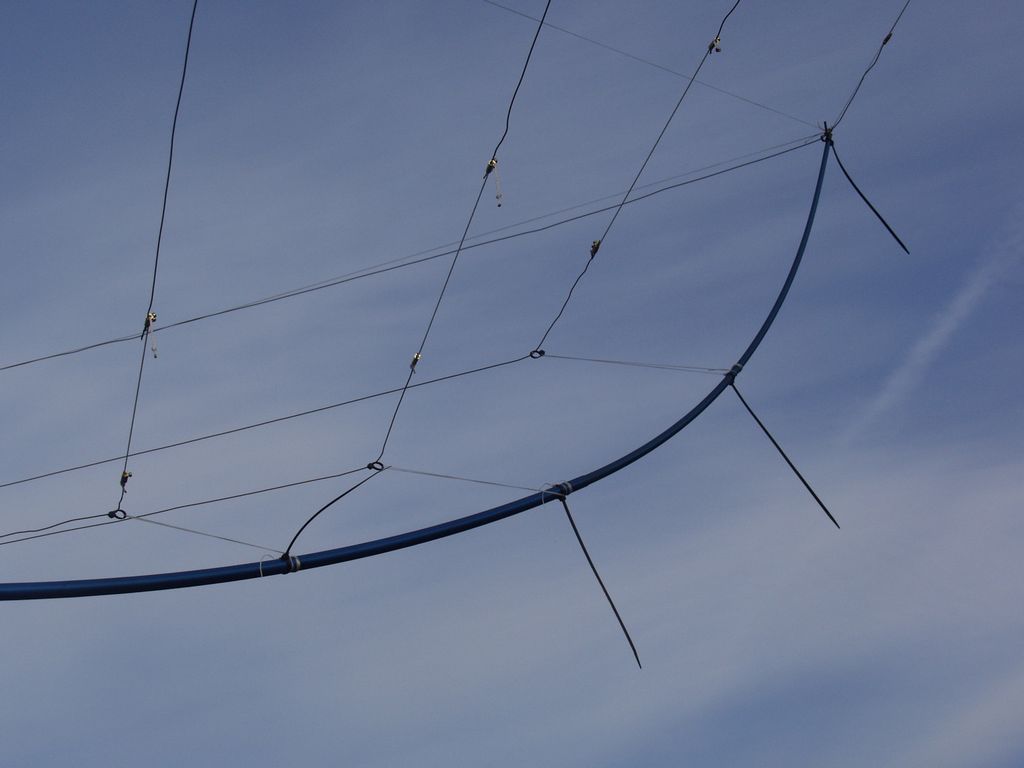

On the multiband testbed, where a wire did not reach the spreader I used "extender cords" so that I could position it at the height I wanted on the support structure.
