Hexbeam Photo Gallery

This gallery shows photographs of the various HexBeam antennas I have constructed over the past couple of years. It is not meant to be a step-by-step guide to construction, but rather a potpourri of techniques which may give you some ideas for constructing your own HexBeam.

  • 2-wire Reflector test antenna

  • Wide-spaced Reflector wires

  • 10m 2-wire reflector test antenna

  • 2-wire Reflector experiments

  • 450 Ohm ladder line Reflector

  • Antenna Testgear

  • 450 Ohm ladder line Reflector

  • RG58 Coax Reflector

  • RG58 Coax Reflector

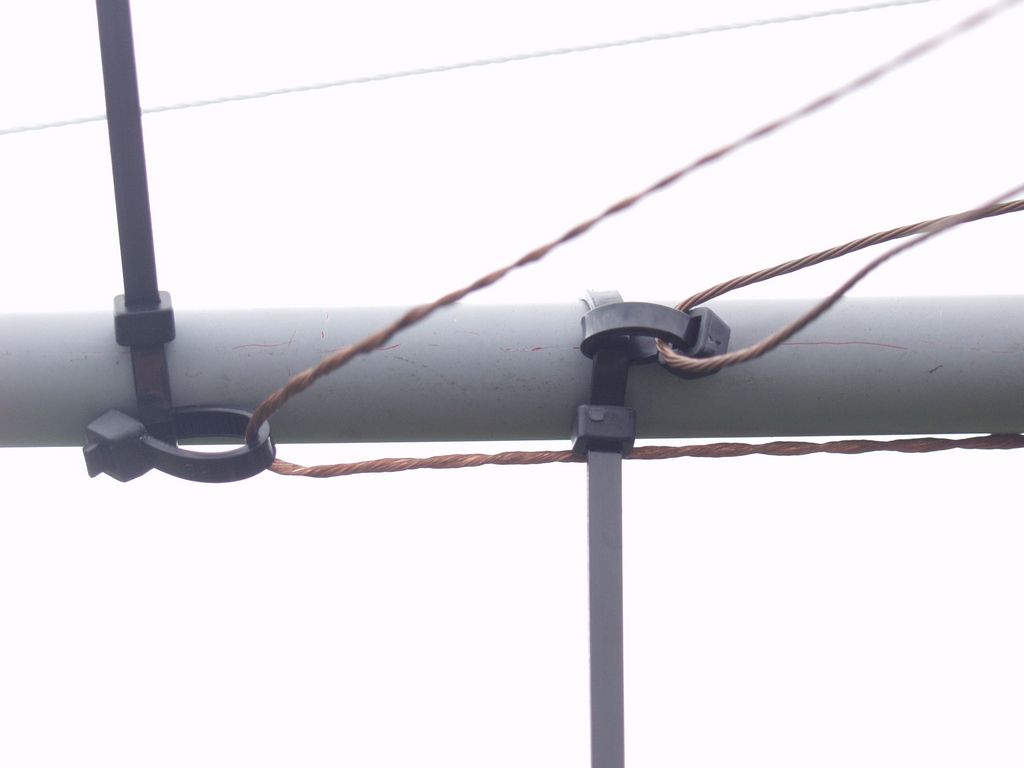

I tried to increase the Q of the Reflector by making it out of two widely spaced wires. This is the arrangement I used to keep them apart where they fixed to the spreaders.
