Hexbeam Photo Gallery

This gallery shows photographs of the various HexBeam antennas I have constructed over the past couple of years. It is not meant to be a step-by-step guide to construction, but rather a potpourri of techniques which may give you some ideas for constructing your own HexBeam.

Classic Mk 2 baseplate
Mk2 Preliminary testing
Mk 2 Wire fixings
20m testing
Reflector fixings
Driver fixings
Driver / Reflector fixings
Wire supports

-10 <<
>> +10
First
Previous
Next
Last
1 / 13
File ref: classic_2_000

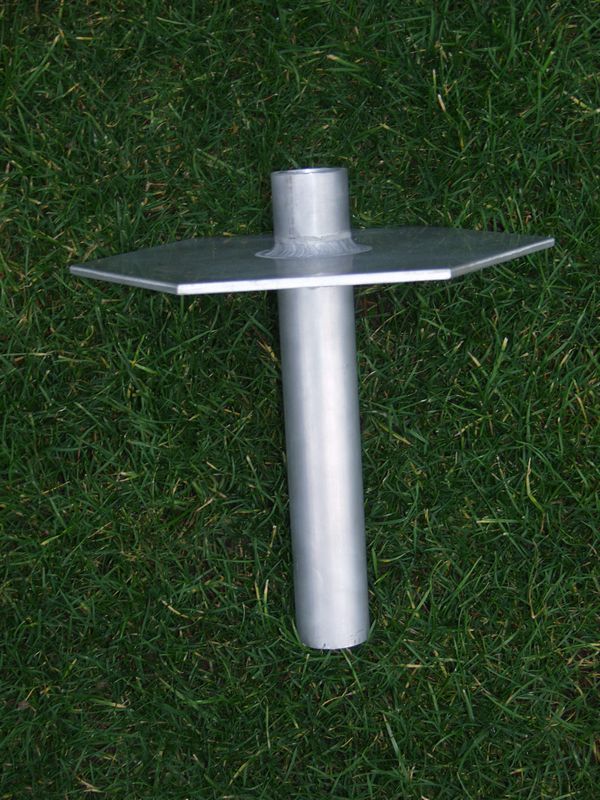

My Classic Mk 1 baseplate arrangement failed in strong winter gales, so I rebuilt the antenna more robustly. This is the aluminium baseplate and rotator stub mast which I had welded up by a local engineering firm.
