Hexbeam Photo Gallery

This gallery shows photographs of the various HexBeam antennas I have constructed over the past couple of years. It is not meant to be a step-by-step guide to construction, but rather a potpourri of techniques which may give you some ideas for constructing your own HexBeam.

  • Testbed wire fixings

  • Wire extensions

  • Spreader extensions

  • Multiband broadband testbed

  • Multiband broadband testbed

  • Multiband broadband testbed

  • Inductively loaded 10m testbed

  • Driver loading coils

  • Reflector loading coils

  • 10m half-wave dipole

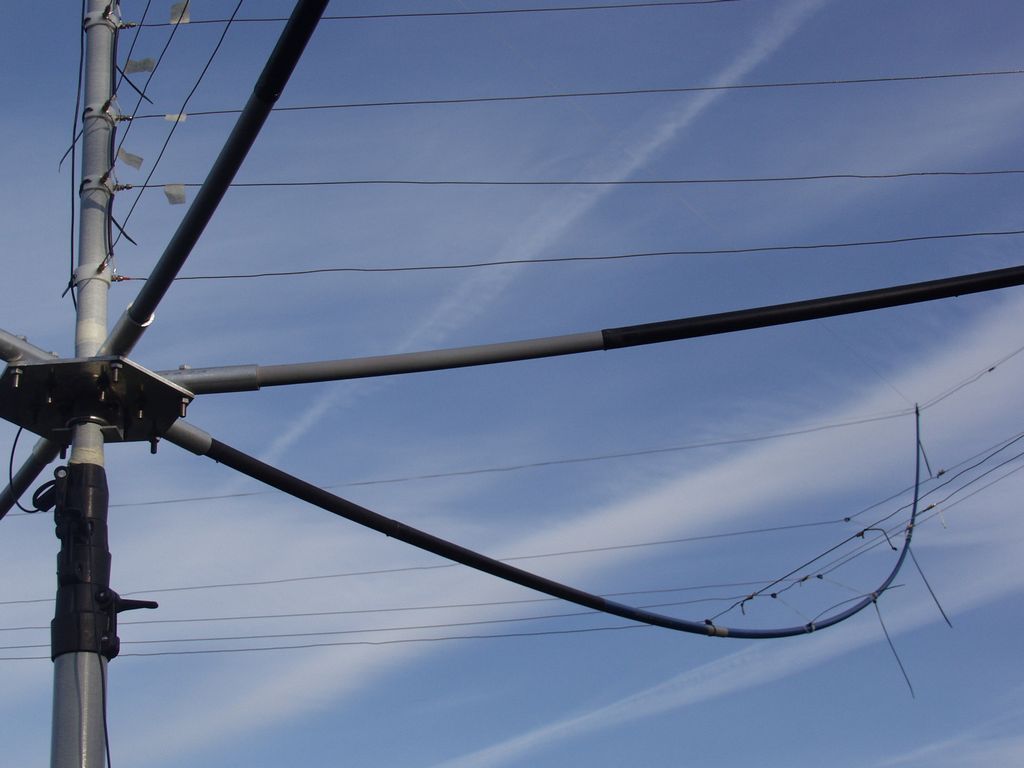

On the broadband hexbeam testbed I needed longer spreaders. This photo shows the extensions I used - the grey section - about 15 inches long.
