Hexbeam Photo Gallery

This gallery shows photographs of the various HexBeam antennas I have constructed over the past couple of years. It is not meant to be a step-by-step guide to construction, but rather a potpourri of techniques which may give you some ideas for constructing your own HexBeam.

Centre post marking (step 4)
Ground level rotator (close up)
Ground level rotator

-10 <<
>> +10
First
Previous
Next
Last
15 / 15
File ref: broadband_013

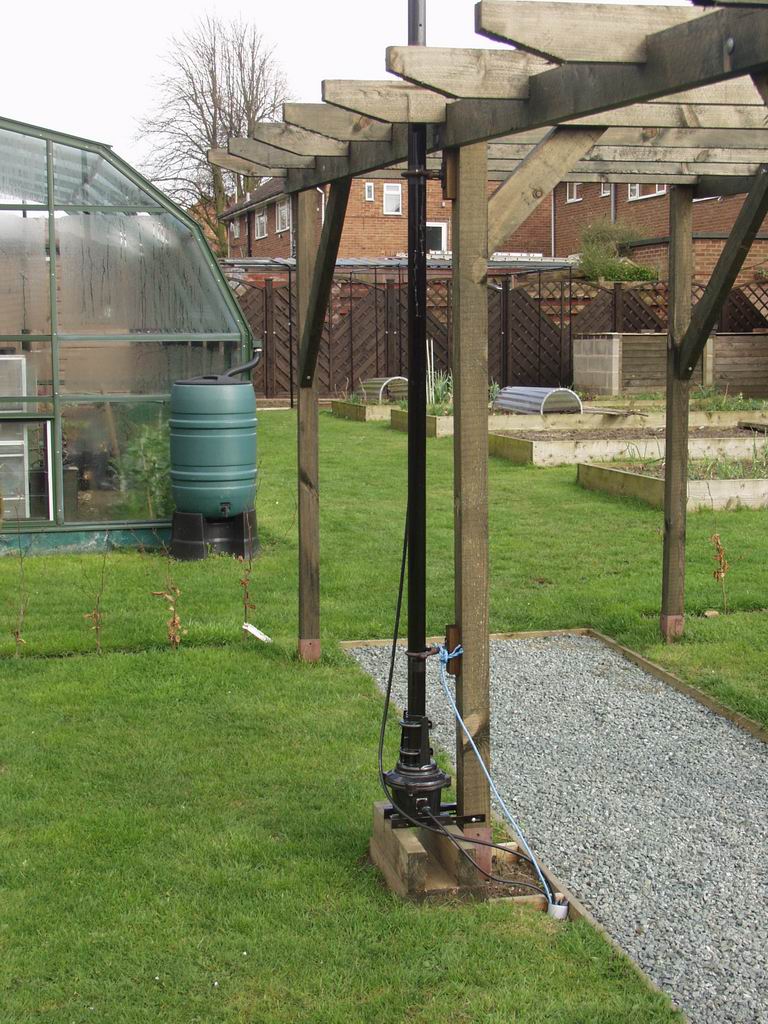

I use a Yaesu G450 rotator mounted at ground level to rotate the broadband HexBeam and mast. The mast is guyed just below the antenna - the XYL's pergola provides a convenient pivot for when I need to tilt the mast over for access to the antenna!
